TT500 Bare Bones Wiring Loom Kit

TT500 Bare Bones Wiring Loom Kit

£137.50

A minimal wiring loom set complete with handle bar switch, designed to deliver simple, direct lighting for the TT500.

Product Downloads

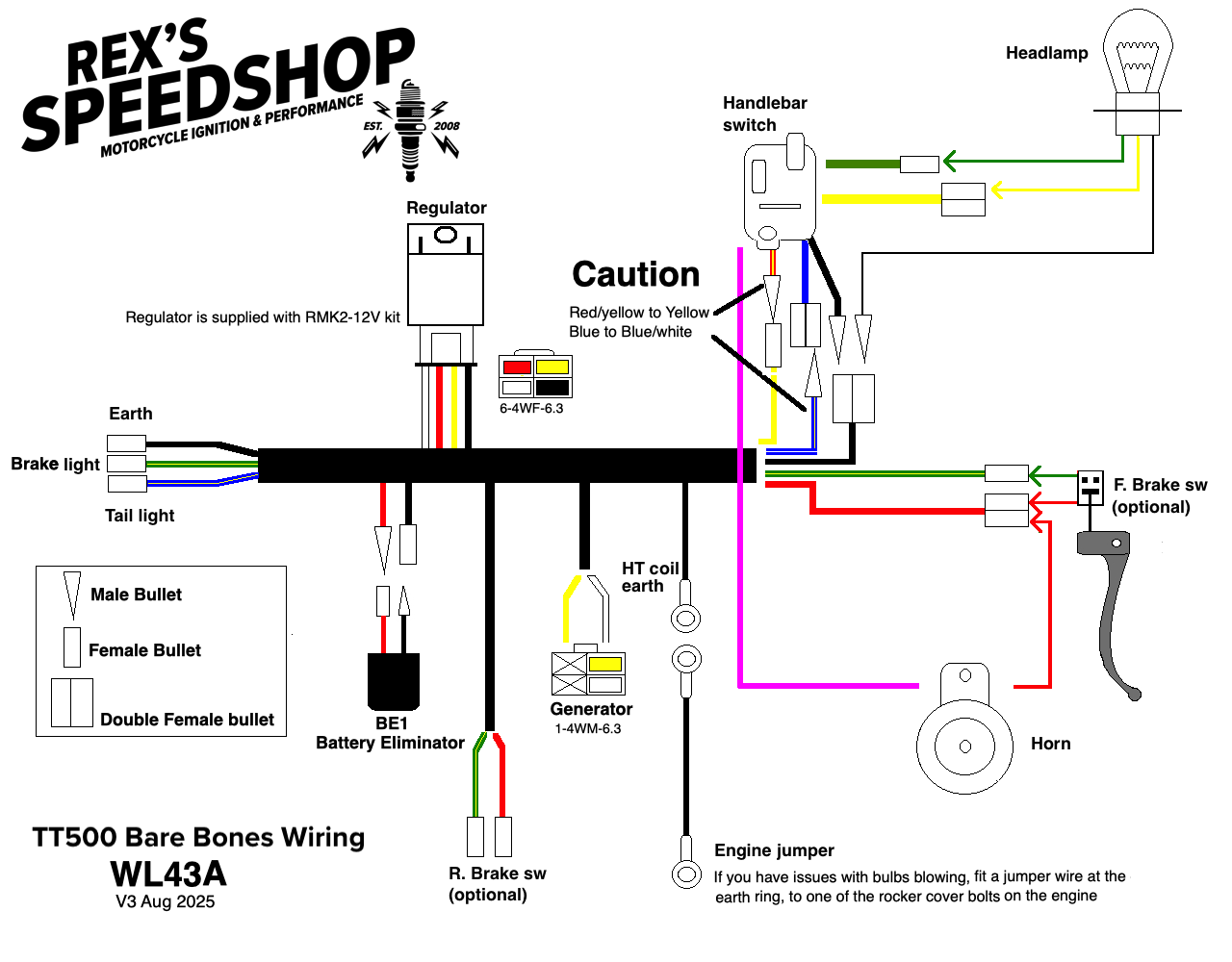

Yamaha TT500 Adding Lighting For Road Use

Description

Bare Bones Lighting Loom Kit – Yamaha TT500
Hand-built to order – please allow build time.

A minimal wiring loom designed to deliver simple, direct lighting for the TT500. Built for riders who want no-frills lighting with reliable 12V power.

This kit provides regulated output for a 45-watt headlamp, tail light, optional brake light, and horn. All outputs are fully regulated to prevent bulb blowouts.

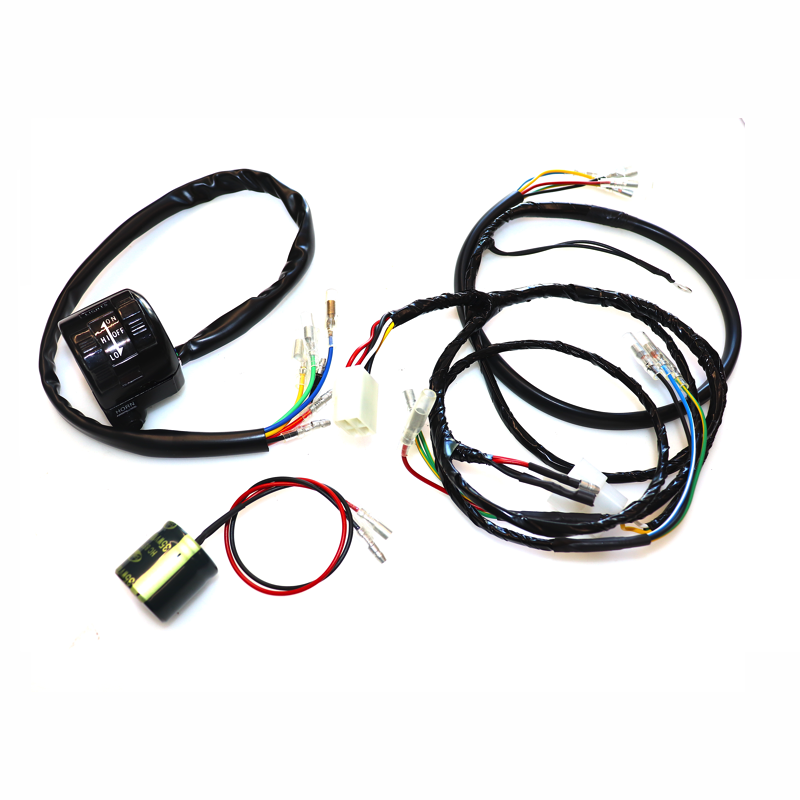

Includes loom, switchgear and a charge condenser. Note: Check the generator options needed to power this wiring set.

Ignition: No Changes! Retain your points ignition OR if you have our electronic ignition, this can be retained also.

Generator Options:

Option 1:  RMK2-12V electronic ignition stator – use bullet connectors (supplied) to connect to the lighting o/p from stator.

Option 2: stock TT500 stator – you MUST replace the standard lighting coil with part LC-1 and voltage regulator. We supply these parts as separate kit, see below.

Option 3: Got our electronic ignition without lighting? No problem! Add the same generator parts as supplied in option 2, keep the same stator.

You’ll need to choose suitable light housings that accept traditional filament bulbs. Fitting lights to a motorcycle that was never equipped with them may also require some technical ingenuity. These items are not included.

Important compatibility note:
You must make sure you have one of the compatible stator options or this wiring set will not work

Not compatible with:

  • Standard TT500stator – requires 12V conversion
  • Standard XT500 stator – requires 12V conversion
  • Batteries
  • LED lights
  • Motogadet or custom switches or wiring devices
  • Indicators
  • Ignition key switch
