Description
MOT compliant on vehicles first registered before 1st April 1986

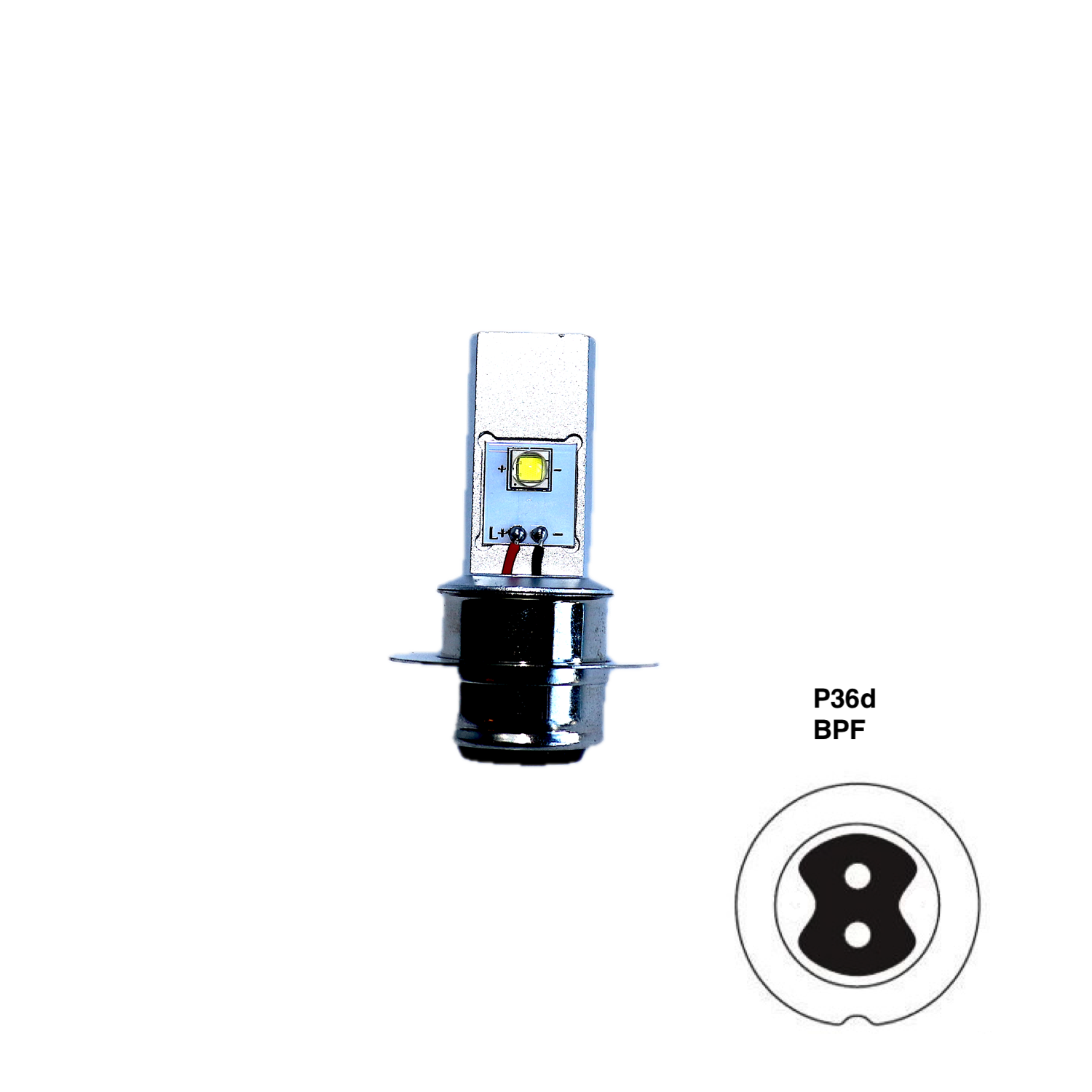

Lucas LED headlamp bulb, British Pre Focus fitting with high and low beams.
Maximum Power required is approx 6W on full beam. This is a massive saving over filament bulbs, allowing dynamos to keep the battery fully charged even with the lights on.
- 6 and 12 volt operation, no change if you switch to 12 volts later.
- Positive and negative earth compatible.
- Low beam is complimented by an additional beam when ‘high’ is selected.
- Beam focus will depend on the reflector used.
- Power consumption 6V: Low 2.7Watts, high beam: 5.7Watts
- Power consumption 12″ Low 2.64Watts, high beam: 5.52Watts
Important Information
Motorcycles with 6 volt alternators: A solid state regulator rectifier unit MUST be fitted.
Most dynamo systems have voltage regulation as standard. There is no requirement to replace a correctly functioning mechanical voltage regulator.
6 Volt operation: LED will not operate below 5.5 volts, so this unit will not illuminate if the battery is at 25% or lower state of charge on a 6V system. Filament bulbs will only glow and will fail to provide a useable beam at this voltage.
